Description
Product

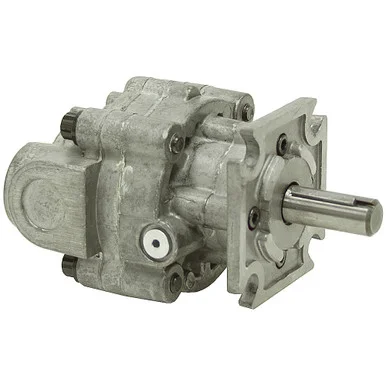

HYDRAULIC MOTOR
Brand new. Parker model MGG20016-BB1A3. Hydraulic motor for agricultural, commercial applications. Geroter design with heavy duty bearings, aluminum case, reversible, Buna-N seals.
(Click here to see the same motor with side ports)
SPECIFICATIONS
- Brand Parker
- Model Number MGG20016-BB1A3
- Displacement 0.372 cu. in./rev
- Pressure
2000 PSI cont.
2500 PSI Int. - Speed
5000 RPM max - Flow 1.61 GPM @ 1000 RPM
- Reversible Rotation
- Torque 59 in. lbs./ 1000 PSI
- Mount 4F17 4 bolt mount w/1.718″ dia. pilot
- Shaft0.5625″ dia. x 1.375″ w/keyway
- PortsSAE 8
- Rear Ports
- Size 5.5″ x 3.5″ x 3.38″
- Shpg. 5 lbs.
| Seal Kit for MGG Series Motors | |
|---|---|
| Seal Kit For Parker MGG Motors Parker 904804 | 900574 |
| Service Kit for MGG Series Motors | |
|---|---|
| Service kit For Parker MGG Motors w/Bearings Parker 904824 | 903060 |
