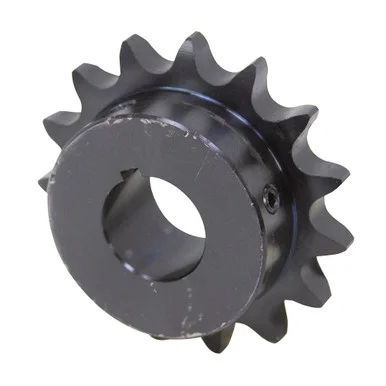

13 Tooth 1″ Bore 60 Pitch Roller Chain Sprocket 60BS13H-1

Description

Product

60 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 60 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.

SPECIFICATIONS

• Pitch60
• Number of Teeth13
• Bore Size1&quot
• Model Number60BS13H-1
• Outside Diameter3.49&quot
• Hub Diameter2-11/32&quot
• Hub TypeB (Hub on one side)
• Length Through Bore1-1/4&quot
• Keyway Size1/4&quot wide x 1/8&quot depth
• Shpg.1.75 lbs.
