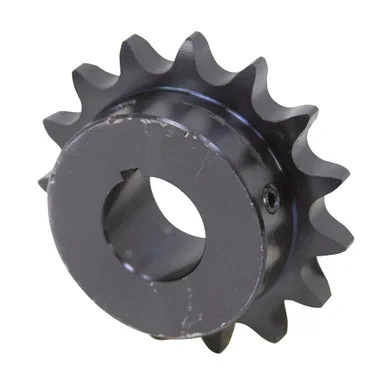

14 Tooth 3/4″ Bore 60 Pitch Roller Chain Sprocket 60BS14H-3/4

Description

Product

60 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 60 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.

SPECIFICATIONS

• Pitch60
• Number of Teeth14
• Bore Size3/4&quot
• Model Number60BS14H-3/4
• Outside Diameter3.74&quot
• Hub Diameter2-9/16&quot
• Hub TypeB (Hub on one side)
• Length Through Bore1-1/4&quot
• Keyway Size3/16&quot wide x 3/32&quot depth
• Shpg.2 lbs.
