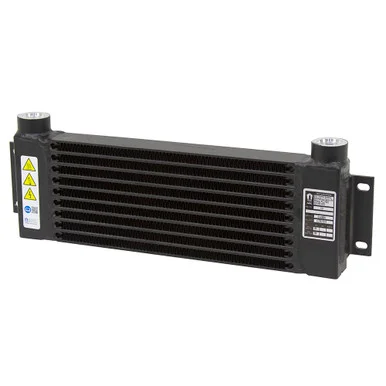

17 GPM AKG C8 Oil Cooler
Brand new AKG C series rugged bar and plate construction oil coolers that feature aluminum construction, leak-free SAE O-Ring connections and mounting tabs. Cooler performance listed in specs below is based on 1,000 SFPM (Square Feet Per Minute) cooling air flow.
SPECIFICATIONS
- ManufacturerAKG
- Model NumberC8
- AKG Item 1102120600
- Pressure250 PSI max.
- Temperature250 F° max.
- ConstructionAluminum
- Flow17 GPM
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR)14603 - Port SizeSAE 12
- Mount Four 1/2″ slotted holes on 3″ x 19.15 centers
- Overall Depth (in.)1.77
- Overall Width (in.)19.15
- Overall Height (in.) 6.57
- Shpg.15 lbs.
| Temperature Control Switches | |
|---|---|
| 115° F Temperature Control Switch Index 8037455 115NO AKG TC-115-WL | 904849 |
| 145° F Temperature Control Switch Index 8037456 145NO AKG TC-140-WL | 904850 |
