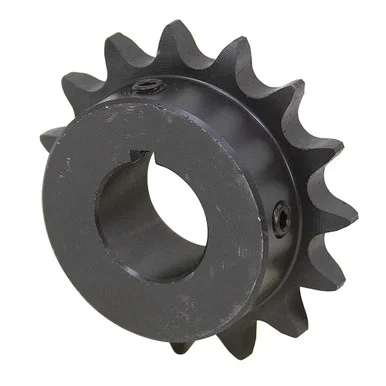

50 PITCH ANSI ROLLER CHAIN SPROCKET
New.ANSI standard 50 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch50
- Number of Teeth18
- Bore Size1-3/16″
- Model Number50BS18H-1-3/16
- Outside Diameter3.92″
- Hub Diameter2-7/8″
- Hub TypeB (Hub on one side)
- Length Through Bore1″
- Keyway Size1/4″ wide x 1/8″ depth
- Shpg.2 lbs.
