Description
Product

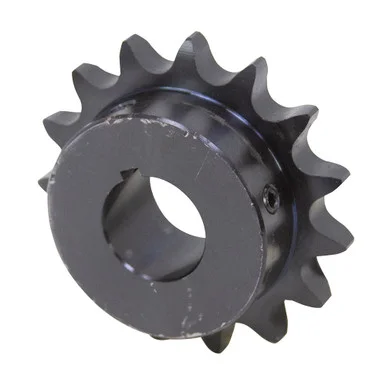

60 PITCH ANSI ROLLER CHAIN SPROCKET
New.ANSI standard 60 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch60
- Number of Teeth19
- Bore Size1-5/8″
- Model Number60BS19H-1-5/8
- Outside Diameter4.95″
- Hub Diameter3-1/2″
- Hub TypeB (Hub on one side)
- Length Through Bore1-1/4″
- Keyway Size3/8″ wide x 3/16″ depth
- Shpg.4 lbs.
