Description
Product

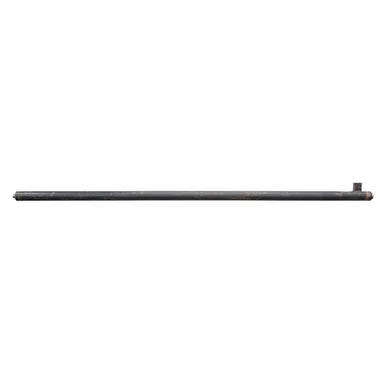

2.346″(60mm) x 98.25″(2495mm) x 1.971″(50mm) SINGLE ACTING DISPLACEMENT HYD CYL
Unused old inventory. Welded, single acting displacement hydraulic cylinder, stamped PZ506120.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 2.346″(60mm) x 98.25″(2495mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.971″(50mm)
|
- Ports BSPP 3/8″-19 TPI
- Retracted Length 104.313″(2650mm)
- Gland Face to Rod Pin Center 0.593″(15mm)
- Shpg. 179 lbs.
|
| END MOUNTINGS |
- Rod End Tapped
- Thread size-PitchM12-1.75
- Thread Depth1.5″
|
- Base End Mounting Stud
- O.D.1.179″(30mm)
- Length 0.875″
- Retention Ring Groove Width 0.093″
- Retention Ring Groove Depth 0.034″
- Base of Cylinder to Edge of Groove 0.686″
|
