Description
Highlights:
- Provides up to 3.5″ of lift
- Optimized for 2010-2021 Toyota 4Runner
- Consistent damping performance front to rear
- Simple, bolt-on installation
- No drilling, cutting, or welding required for installation
- 1-Year Limited Warranty
- Made in the USA

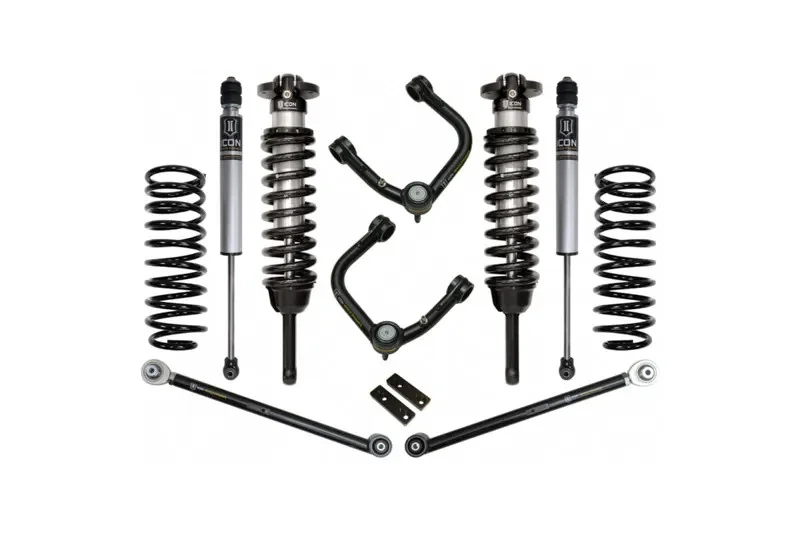

Comprehensive Coilover and Rear Shock Kit
If you want to improve the off-road performance, handling, and ride quality of your 2010-2024 4Runner, there is no better option than the ICON Stage 3 0-3.5″ Front & Rear Tubular Suspension System. This complete leveling kit contains all the same suspension hardware as the Stage 2 System, but has added components to give your 4Runner killer lift and outstanding performance on the streets or the roughest trails. The ICON Stage 3 4Runner suspension system is fully adjustable. The system is capable of giving you up to 3.5″ of front lift, which allows you to install massive 33″ tires to make your 4Runner an off-road monster. The ICON kit features a pair of incredible ICON extended travel coilover shocks for the front of your SUV and ICON 2.0 rear shocks, with 2″ rear spring kit, for unmatched shock damping and control. In addition to all these fantastic upgrades, the Stage 3 System includes ICON Delta Joint Upper Control Arms and a Tubular Steel Rear Lower Link Kit. Give your 4Runner incredible off-road performance while keeping your street ride quality smooth and comfortable, with the ICON Stage 3 0-3.5″ Front & Rear Tubular Suspension System.
Powerful ICON 2.5 Extented Travel IR Coilovers
The ICON 4Runner Extended Travel Coilovers have been explicitly designed to improve the capabilities of your 4Runner’s suspension by increasing the suspension travel. The coilovers offer the best ride quality and handling available for the 4Runner. The coilovers come complete with all the installation hardware and a sway bar relocation bracket kit to adjust the sway bar location to clear the larger shock. The coilover kit consists of an ICON 2.5″ aluminum CAD plated shock body surrounded by an ICON-engineered performance coil spring that provides increased front wheel travel over stock and articulation distance without compromising your truck’s smooth street ride quality. Give your 4Runner up to 3.5″ of front end lift, which allows you to install up to 33″ tires without trimming.
ICON 2.0 Aluminum Shocks with Springs
ICON has the rear of your 4Runner covered with the impressive 2.0 Aluminum Series Rear Shocks. These shocks are the perfect upgrade for everyday street travel and improved off-road performance. The shocks provide up to 3″ of rear lift to help level out your SUV and provide consistent suspension damping, perfectly pairing with the front coilovers. These nitrogen-charged monotube shocks feature one-piece linear/digressive pistons and 5/8″ nitro-steel shafts, providing unbeatable reliability under any conditions. ICON is determined to improve your ride quality and has included rear coil springs to help with load-bearing capacity and ride height for larger tires. The springs are guaranteed not to sag and pair perfectly with the 2.0 Rear Shocks to provide unbeatable performance.
ICON Delta Joint Tubular Upper Control Arm Kit
The control arms feature ICON’s patent pending Delta Joint, which is a heavy-duty high angle ball joint that combines the strength of a ball joint with the performance of a traditional uniball. The weakness of traditional uniball is their exposure to the elements. The Delta Joint features a zinc plated housing that provides corrosion resistance and a grease seal that protects the joint. The ICON Delta Joint Tubular Upper Control Arm Kit offers more robust features than a uniball and leads the industry in performance for your 4Runner. The Delta Joint Tubular Upper Control Arms are built with durability and long-lasting performance in mind. The UCAs are constructed from CNC bent 1026 DOM steel tubing and given a semi-gloss black powder coat finish for corrosion resistance. The o-ring sealed uniball cap prevents the elements from damaging the components and keeps the UCAs functioning flawlessly.
ICON Tubular Steel Rear Lower Link Kit
The stock rear lower link arms in the 4Runner do the job, but the ICON Tubular Steel Rear Lower Link Kit is a significant upgrade, offering increased strength, adjustability, and performance. The ICON components are made from CNC-machined and notched 1026 DOM steel, improving the strength and durability over the OEM components. The rear lower link arm utilizes a multi-durometer bushing, which provides noise-free operation and maximum angularity without the need for maintenance. The kit features PTFE-lined FK rod ends that increase suspension articulation, reduce deflection, and improve link arm length adjustability. ICON has engineered these components to perform in the harshest conditions and strengthen your SUV’s off-road capabilities.
Easy Installation
The ICON Stage 3 Suspension System is incredibly simple to install. The coilovers and shocks are simple bolt-on replacements for your factory shocks and front coilovers. The kit can typically be installed in just a few hours and comes with all the necessary installation instructions and hardware. ICON knows that protecting your investment is essential, which is why they offer a 1-Year Limited Warranty.
Wheel & Tire Fitment: This suspension system requires an 8-8.5″ wide wheel with 4.75″ of backspacing to fit a 33×11.25″ tire. Larger wheels may fit, but fender trimming and modifications will be required. Your factory wheels can be reused, but limits you to a factory width tire.
Vehicle Fitment: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Toyota 4Runner
Notes:
- The use of shock shin guards is recommended to reduce the chance of shock shaft damage. The shocks are located in a vulnerable position that allows debris to easily com in direct contact with the shock shaft.
- KDSS equipped vehicles require the ICON Rear Adjustable Track Bar.
