Description
Product

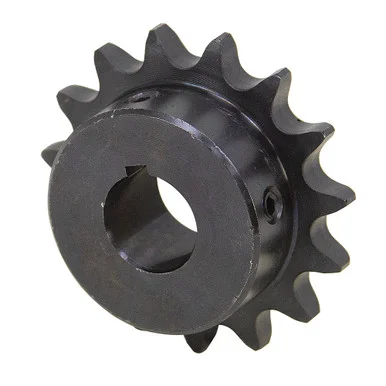

40 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 40 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch40
- Number of Teeth25
- Bore Size1″
- Model Number40BS25H-1
- Outside Diameter4.26″
- Hub Diameter3-1/4″
- Hub TypeB (Hub on one side)
- Length Through Bore1″
- Keyway Size1/4″ wide x 1/8″ depth
- Shpg.2.22 lbs.
