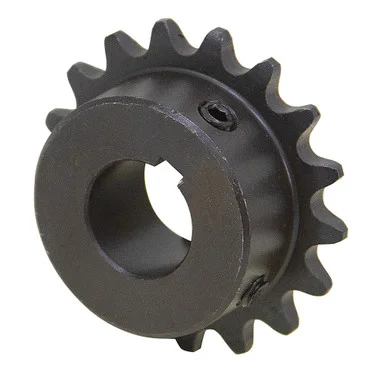

35 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 35 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch35
- Number of Teeth32
- Bore Size5/8″
- Model Number35BS32-7/8
- Outside Diameter4.03″
- Hub Diameter2″
- Hub TypeB (Hub on one side)
- Length Through Bore7/8″
- Keyway Size3/16″ wide x 3/32″ depth
- Shpg.1.5 lbs.
