Description

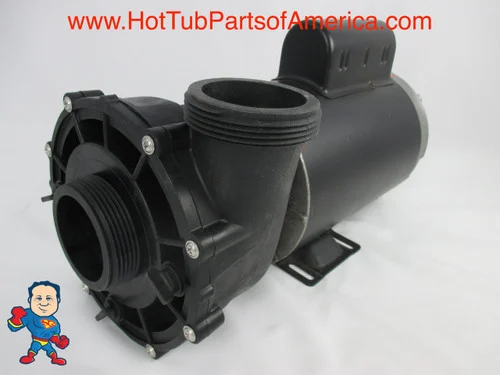

This complete 3 Horse Power 10.0 Amp single speed 56 Frame circulation pump is manufactured by Intertek LX. Common label designations include WUA-300-I, WP-300-I, or LP-300-I part numbers. Please verify pump identification and compatibility using the specifications below to ensure proper fit. Physical dimensions: approximately 7 1/4″ across pump face, 7 3/8″ measured from bottom to top of volute pressure side, and 15″ from rear to front edge. Both suction and pressure side thread fittings are designated 2″ x 2″ but actually measure 3″ from thread edge to thread edge.
IMPORTANT: This pump design closely resembles Aqua-Flo and CMP pumps and complete units are interchangeable when replacing entire assembly.
If your existing wet end features a bleeder barb and the bleeder screw heads accommodate a flat screwdriver, this replacement will maintain the same configuration.
