Description
Product
4.33″(110mm) x 79″(2007mm) x 3.15″(80mm)DA HYD CYL

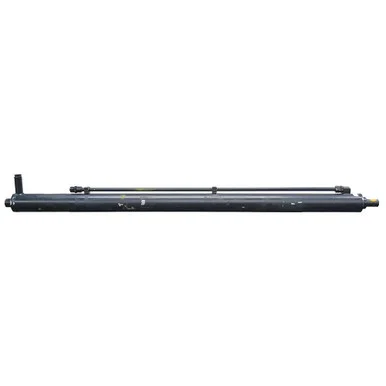

Unused old inventory. CARGOTEC-KALMAR double acting hydraulic cylinder. Cylinder has flow limiter cartridge in extend port with numbers SB43C-115/150. Numbers on cylinder 923960.0007.
SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.33″(110mm) x 79″(2007mm)
- Barrel Thickness 0.303″
- Gland Retainer Threaded in gland
- Pressure3000 PSI
- Rod Dia. 3.15″(80mm)
|
- Extend PortBSPP 1″
- Retract Port ORFS 16
- Retracted Length96.5″
- Gland Face to Rod Pin Center 4.5″
- Shpg.369 lbs.
|
END MOUNTINGS |
|
- Rod End Male Stud
- Length/Width 3.25″/1.97″
- Snap Ring Groove 0.088″
- Tapped M12-1.75 x 1.18″(30mm)
|
- Base End Thru-Hole
- Thru-Hole Width 2.38″
- Pin-Center-To-Thru-Hole-Base-End 1″
- Pin Hole5/8″
|
