Description
Product

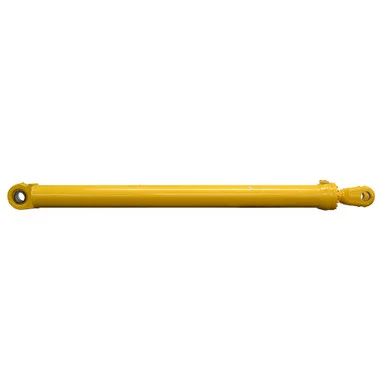

4.92″(125mm) x 58.875″(1495mm) x 2.76″(70mm) DA HYD CYL
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 11-088-346-9.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.92″(125mm) x 58.875″(1495mm)
- Barrel Thickness 0.319″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia.2.76″(70mm)
|
- Ports 4 bolt 3/4″ code 61 flange size 12
- Retracted Length 82.75″
- Gland Face to Rod Pin Center7″
- Shpg.408 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 5.65″
- Inside Width 2.63″
- Throat Depth 5.75″
- Pin Hole 2.36″(60mm)
|
- Rod End Swivel Eye
- Width 2.63″
- Pin-Center-To-Swivel Eye-End 3.187″
- Swivel Eye Width 2.47″
- Pin Hole 2.36″(60mm)
|
