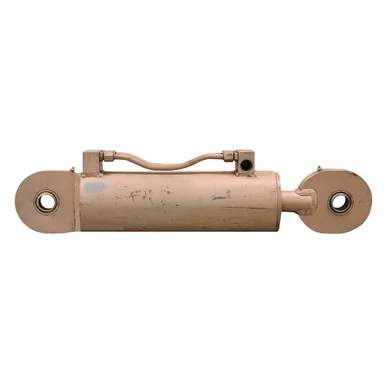

5″ x 11.75″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped A112884D. Cylinder has two SAE 12 cartridge ports, one on each end. Cartridges not included.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5″ x 11.75″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2″
- Rod Thickness 2″
|
- Ports SAE 6
- Retracted Length 27.5″
- Gland Face to Rod Pin Center 5.75″
- Shpg. 98 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width1.13″
- Pin-Center-To-Swivel Eye-End2.964″
- Swivel Eye Width1.375″
- Pin Hole1.5″
|
- Base End Swivel Eye
- Width1.125″
- Pin-Center-To-Swivel Eye-End3″
- Swivel Eye Width1.375″
- Pin Hole1.5″
|
