Description

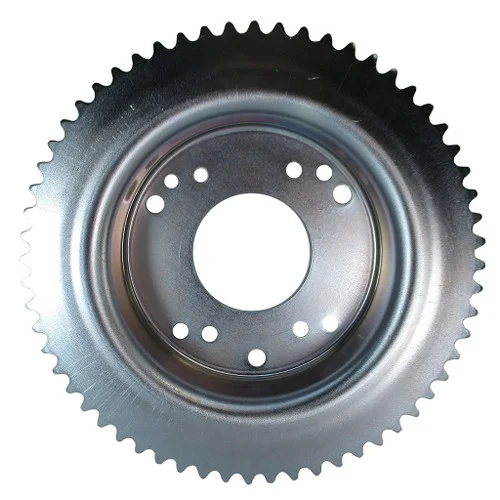

60 tooth sprocket with 4-1/2″ drum for 35 chain. Use for internal brake. Stamped for added precision, our one-piece 35 chain 60 tooth Steel Sprocket and 4-1/2″ Drum combinations provide strong, reliable units at economical prices. (Replaces Riveted assemblies.)
The three bolt patterns are as follows:
3 holes (5/16″) on a 3.75″ Bolt Circle
4 holes (1/4″) on a 3.75″ Bolt Circle
4 holes (1/4″) on a 3.228″ Bolt Circle (these holes are a bit differently spaced to accommodate the four holes on the mini-hubs AZ_2561 / AZ_2568 / AZ_2565)
