Description

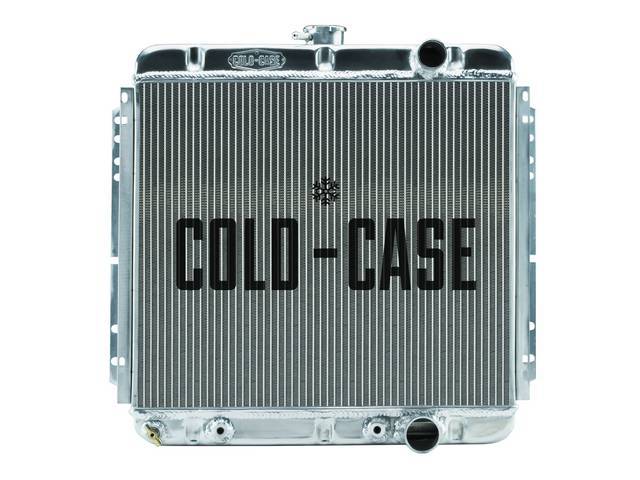

2 row, 1 1/4 tubes, 82 cores, 16 fins per inch, 19 5/8 core width x 16 1/2 core height x 3 core thickness, inlet 1 1/2 RH, outlet 1 3/4 RH, 6trans cooler, front mount.
High efficiency core.OE style stamped and polished tanks.OE mounting.100% TIG welded no epoxy used anywhere.Lifetime manufacturers warranty.The design of these radiators gives them a 10% cooling advantage over the Champion 4 row and 20% over the Champion 3 row.Drain cock is included and a factory fan shroud for the same application will fit.
See 8006-2AK, 8006-2CK, 8006-3AK, 8006-3CK for mounting hardware options.
Note: Thicker than original radiators may require a shorter fan spacer, a different fan or an electric fan.Check for a minimum of 1/2 clearance (1 preferred) between the fan and radiator core BEFORE you start your engine!Thicker than original radiators may also need modifications to the saddle mounts to fit the thicker tanks and for the location of the drain cocks.
Aluminum radiators and heater cores require 50/50 mix coolant replacement at least every 24 months or 30,000 miles to maintain the necessary silicate levels that prevent corrosion in aluminum.
** Note: Fastening of fans or other accessories to the radiator through the core will VOID any warranty.
** Note: Cold Case requires customers to contact them directly for any radiator defects or warranty claims.Do not return any product to NPD.**
Ford Mustang Years:
1967 (67), 1968 (68), 1969 (69), 1970 (70)
Above years shown are used for searches and are not application listings.
Mercury Cougar Years:
1967 (67), 1968 (68), 1969 (69), 1970 (70)
Above years shown are used for searches and are not application listings.
Ford Fairlane and Ranchero Years:
1964 (64), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69)
Above years shown are used for searches and are not application listings.
Ford Torino and Ranchero Years:
1968 (68), 1969 (69)
Above years shown are used for searches and are not application listings.
NPD Part Number : 8005-3EA
Manufacturer Reference ‘s:FOM561A,
