Description

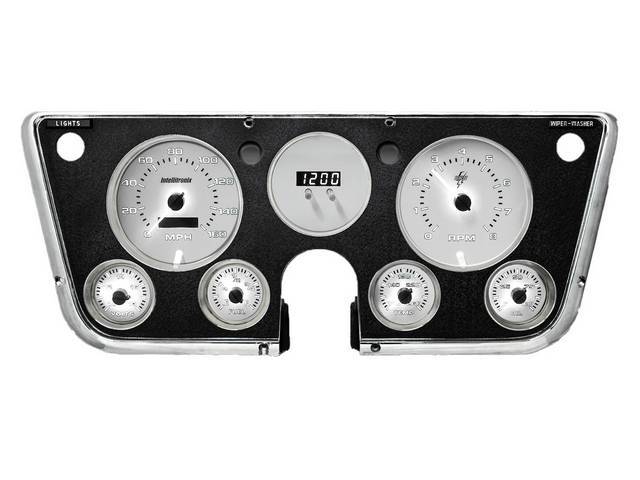

Complete Analog Gauge Instrumentation Kit, White subsurface w/ White LED
Award-winning Analog Direct Fit Gauge Panel with white polycarbonate sub surface and brush stroke finish makes for an unforgettable show stopping work of art. Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission for 8-6-4-cylinder engines, odometer, trip meter, high speed recall, 0-60 time, andmile elapsed time, all with the push of a button! Tachometer reads from 0 to 8000 RPM in 100 RPM increments. Water Temperature gauge reads from 100 to 260F. Fuel Gauge is user programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders, reads from 0-99%. Voltmeter with high and low voltage reads from 10.0 -18.0 volts range. Oil Pressure reads from 0-100 psi. Turn signal indicators, and high beam indicator included. It also comes with factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer sender NPD part number C-9743-99.Automatic nighttime dimming. All required sending and sensor units are included.
Note:
BEZEL NOT INCLUDED.
Note:
Made in USA. Lifetime Warranty.
Chevrolet C / K 1/2-Ton Pick-Up Truck Years:
1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72)
Chevrolet 1/2-Ton K5 Blazer Years:
1969 (69), 1970 (70), 1971 (71), 1972 (72)
GMC C / K 1/2-Ton Pick-Up Truck Years:
1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72)
GMC 1/2-Ton K5 Jimmy Years:
1970 (70), 1971 (71), 1972 (72)
NPD Part Number : K-9743-88W
Manufacturer Reference ‘s: WL6003W
