Description

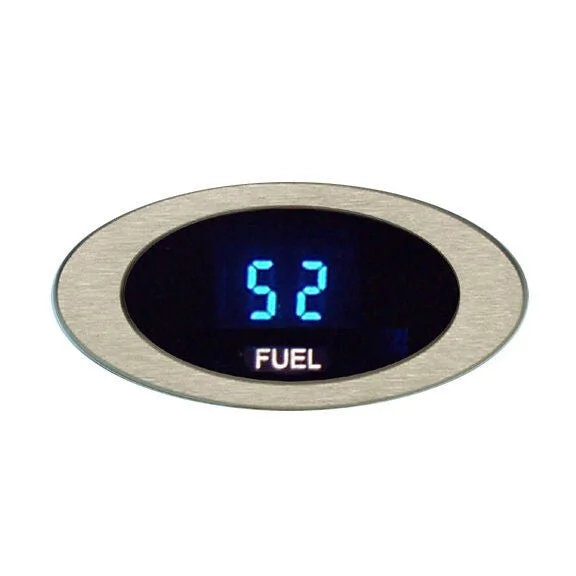

Fuel Level Gauge
from Dakota Digital
ION-06-1
from Dakota Digital:
The Ion Series of instrumentation from Dakota Digital offers the latest in modern styling, cutting edge technology and the utmost digital accuracy for your custom ride! The Ion Series was designed to set itself apart from the standard gauge look offering sleek, streamlined instrumentation to match the theme of today’s high tech vehicles. Enclosed in fully machined aluminum housings the Ion Series offers a truly astounding look to match the superb performance.
Range: 0- 99%
- Choice of either Teal or Blue display.
- Choice of either Satin or Chrome bezel.
- Machined aluminum bezel and housing.
* Non-glare lens option available on Teal display only.
Gauge preset to work with the following fuel senders resistance ranges:
Sender TypeEmpty Resistance Full Resistance
GM300ohms 30ohms
GM900ohms 90ohms
GM25040ohms250ohms
Ford1073ohms10ohms
Ford15020ohms150ohms
VDO 10ohms180ohms
Stewart Warner/Sun240ohms 33ohms
Import112ohms 4ohms
Sensor SEN-06-1 available for universal applications, fits most fuel tanks, can be purchased separately in our store (not included).
* Choice of either BLUE or TEAL display.
* Choice of either Black or Chrome bezel.
* Machined aluminum housing.
* Non-glare lens option available on Teal display only.
Don’t forget: When making your payment, please put in the note field which display you would like (blue or teal) and which bezel you would like (black or chrome).
Brand: Dakota Digital
Part Number: ION-06-1
