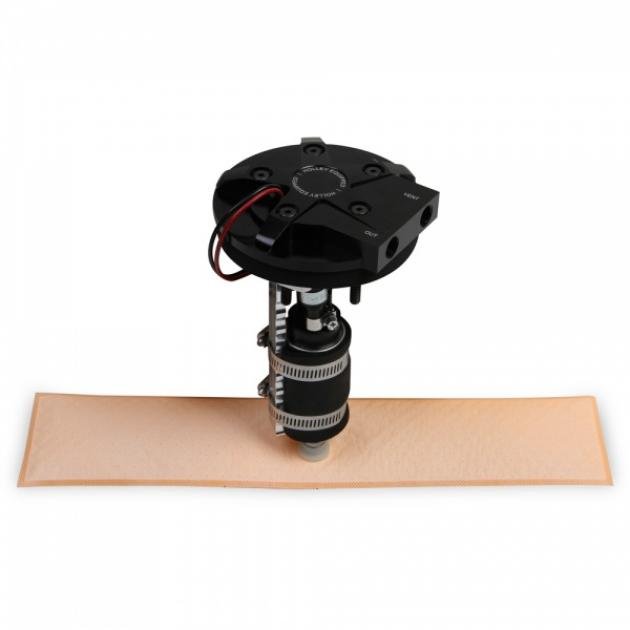

Holley Sniper Returnless 255LPH In-TankFuel Module

Holley Sniper Returnless 255LPH In-TankFuel Module

Original price was: $1,595.99.Current price is: $319.20.

SKU: 3148220 Category:

Description

KEY FEATURES &amp BENEFITS:

  • 255LPH EFI Returnless In-Tank Fuel Pump Module Conversion Kit
  • Eliminates The Need For A Return Line And Conventional Fuel Pressure Regulator.
  • The Easiest Way To Convert Your Vehicle To An In-Tank, EFI Fuel System
  • Installs In Any Fuel Tank From 7.25″ To 12″ Deep To Fit A Wide Variety Of Applications
  • The Low Profile Design Is Only 1.275″ Thick Above The Tank Mounting Surface For Added Clearance When Needed
  • The Innovative Clamping System Allows You To Locate The Module Anywhere In The Tank Beside Your Existing Sending Unit
  • The Clamping System Allows You To Rotate The Unit 360 Degrees For Easier Clocking Of The Plumbing And Wiring Locations Under Your Ride
  • Includes Innovative Holley Hydramat To Ensure Consistent Fuel Supply. The 3″x15″ HydraMat Mounting Flange Has 6 Clocking Pin Locations To Allow For 360 Degree Adjustment To Clear Sending Unit Levels Or Any Tank Floor Restrictions That You Might Encounter
  • Black Anodized Aluminum Construction For Corrosion Resistance And Long Lasting Good Looks
  • 1/4″ NPT Ports For A Wide Variety Of Plumbing Applications
  • Ideal For ANY EFI Conversion
  • Notes: Installation Requires The Following Items Which Are NOT Included – Holley HP Billet Filter or Equivalent, Fuel Hose &amp Fittings (Threads In Pump Are 1/4″ NPT), &amp Relay Kit (30 AMP With A Minimum Of 12 Gauge Wire).

SPECIFICATIONS:

  • Quality Level: High Performance Upgrade
  • Sending Unit Included: No
  • Flow Rate: 255 LPH (Liters Per Hour)
  • Max Pressure: 60 PSI
  • Max HP Supported: 550HP (EFI) or 700HP (Carbureted) @ 60 PSI at 13.5 Volts / 10.4 AMP Draw
  • Fuel System Type: Return Style Only
  • Works WithReturn Fuel Systems:No
  • Inlet Size &amp Outlet Size 1/4 In. NPT
  • Inlet&ampOutlet Quantity:One
  • Inlet &amp Outlet Attachment: Female Threads
  • Dimensions: Fits Fuel Tanks From 7.25″ to 12″ Deep.
  • What’s In The Box: 255LPH Fuel Pump,Internal Fuel Pressure Regulator Preset At 60 PSI, Fuel Pump Hanger Assembly, Foam Gasket Ring, 24″Long Foam Spacer Strips, Pump Clamps, Hose Clamps,Fuel Pump Module, 3″ x 15″ Holley HydraMat, Installation Instructions
  • Where It’s Made:USA
  • Manufacturer Limited Warranty: 90-Day
  • Product Weight:3.5lbs.
  • Product Dimensions:18.25″ x 5.88″ x 6.06″
  • Approx. Installation Time: 4-5 Hours, Experienced Mechanic Times Quoted, Yours May Take Longer
  • Installation Difficulty: Difficult, Seek Professional Installation
