Description

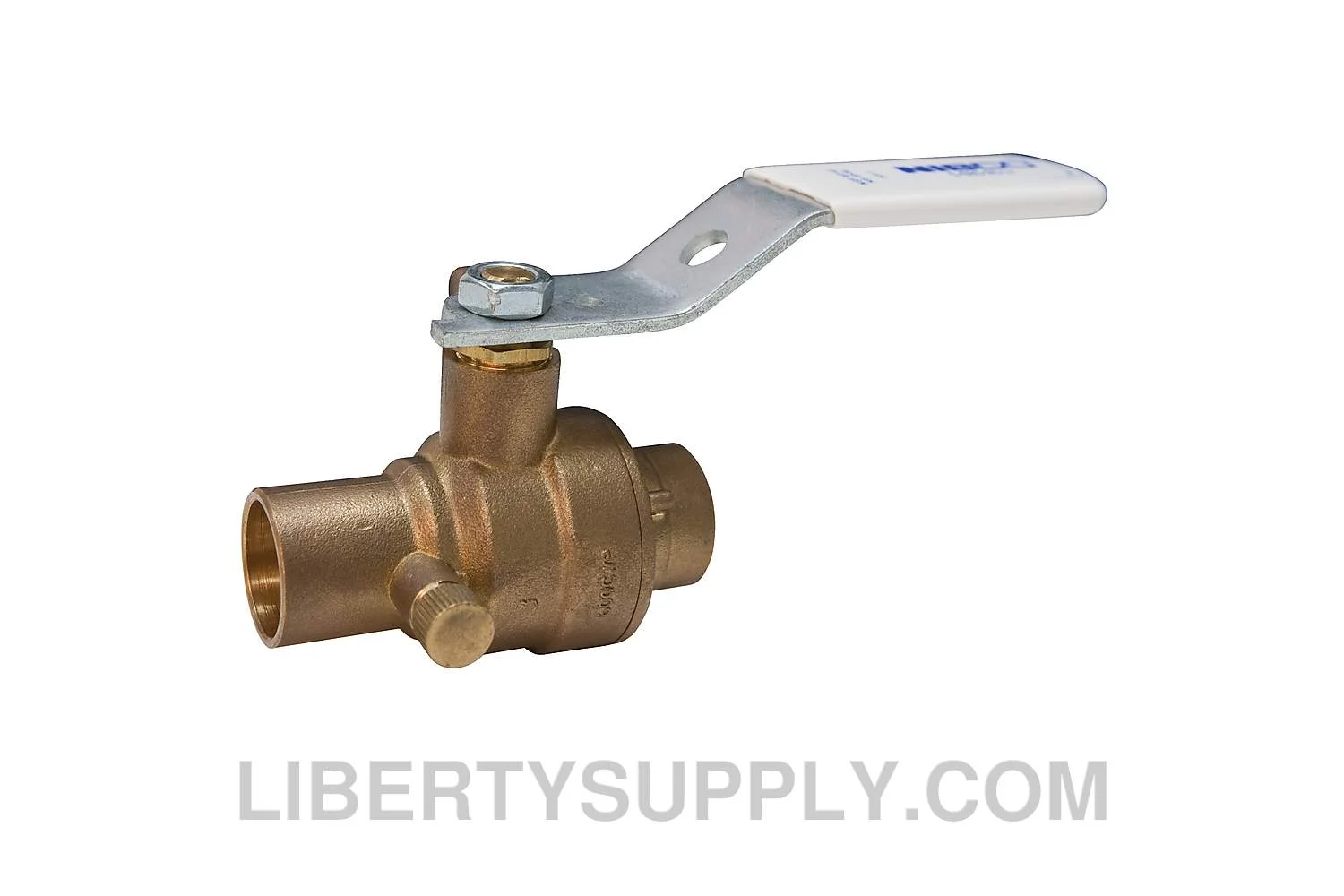

NIBCO lead-free ball valve with drain features solder ends for easy installation. The valve is constructed of lead-free dezincification-resistant (DZR) high quality performance bronze silicon alloy per ASTM specifications. The two-piece valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. NIBCO ball valve provides ease of operation with quarter-turn (90°) open to close. The lead-free ball valve provides bubble-tight shutoff at 600 psi. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Full port
- Silicon Performance Bronze ball and stem
- Blowout-proof stem
- PTFE seats
- White handle for easy lead-free identification
- NIBCO double-oval lead-free body marking
- Solder end connections
- Dezincification resistant
- Lead-free
- Conforms to MSS SP-110
- NSF/ANSI/CAN-61 and 372
Specifications
| Manufacturer | NIBCO |
|---|---|
| Part Number | NJ99916 |
| Model | S-685-80D-LF |
| Application(s) | Lead-Free |
| System Use | Lead-Free |
| Basic Material | Lead-Free Bronze |
| Nominal Pipe Size | 1/2″ |
| Type of Valve | Ball |
| Ball Port Style | Full Port |
| Ball Material | Silicon Bronze |
| Valve End Connection Type | Female Solder Cup |
| End Connection | Solder |
| Ball Operator | CS Standard Lever Handle |
| Turns Operations | Quarter-Turn |
| Stem Material | Silicon Bronze |
| Seat Seal Material | RPTFE (Reinforced) |
| Valve Trim Package | Bronze Trim |
| Special Options | with Drain |
| Old Material Number | S68580DLF12 |
| UPC | 039923299499 |
| Length | 5.11″ |
| Width | 2.63″ |
| Height | 1.5″ |
| Potable Water Code | LL Compliant NSF/ANSI 372 |
| CA Proposition 65 Warning Statement | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
