Description

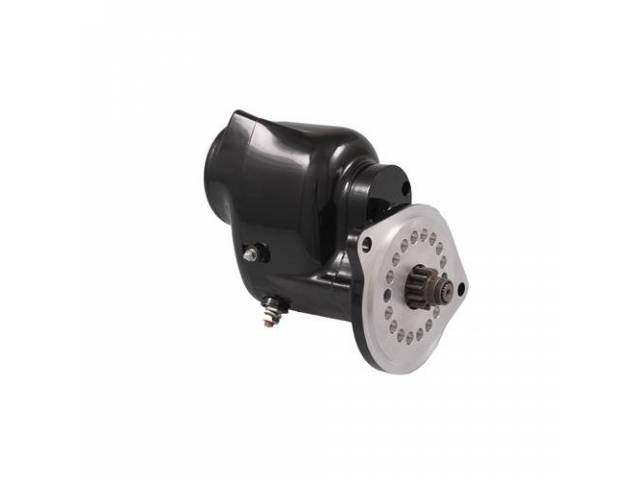

PMGR style.3/4 offset. Offset is the distance from the starter mounting surface to the engine side of the ring gear.Fits 4.084 diameter block plate.A sleek design for a custom engine compartment that performs as well as it looks.Fully enclosed aluminum body protects the components from the elements and damaging heat.Adjustable starter clocking for improved clearance around headers and other parts.Powerful Nippondenso motor combined with a 4.4:1 gear ratio produces 200 pounds/feet of torque for dependable starting of high compression engines.Typically the 3/4 offset Ford starter is used on M/T with 157 or 160 tooth flywheels and all A/T (157, 160 or 164 tooth flexplates).
See 11002-4AK, 11002-5AK for mounting hardware options.
Note use of a PMGR style starter with a computer controlled engine requires the addition of a diode suppressed starter solenoid relay switch (11450),See F-11450-5 (Motorcraft) or M-11450-4B (replacement), for a proper solenoid.
Ford Mustang Years:
1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Mercury Cougar Years:
1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Ford Falcon and Ranchero Years:
1960 (60), 1961 (61), 1962 (62), 1963 (63), 1964 (64), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70)
Above years shown are used for searches and are not application listings.
Ford Fairlane and Ranchero Years:
1964 (64), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70)
Above years shown are used for searches and are not application listings.
Ford Torino and Ranchero Years:
1968 (68), 1969 (69), 1970 (70), 1971 (71)
Above years shown are used for searches and are not application listings.
Ford Thunderbird Years:
1955 (55), 1956 (56), 1957 (57)
Above years shown are used for searches and are not application listings.
Ford Truck F1, F2, F3, F100, F150, F250, F350 Years:
1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81)
Above years shown are used for searches and are not application listings.
Ford Bronco Years:
1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81)
Above years shown are used for searches and are not application listings.
Ford Mustang Fox Body and SN-95 Years:
1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91), 1992 (92), 1993 (93), 1994 (94), 1995 (95)
Above years shown are used for searches and are not application listings.
NPD Part Number : 11002-4EA
Manufacturer Reference ‘s: Pertronix S3004B, C2OZ-11002-A, C2OZ-11002-B, SA-660, D4OZ-11002-A, D7OZ-11002-A
Product Instructions and Additional Info:
11002-4EA Detail A
11002-4EA Instructions
11002-4EA Techdata
