Description

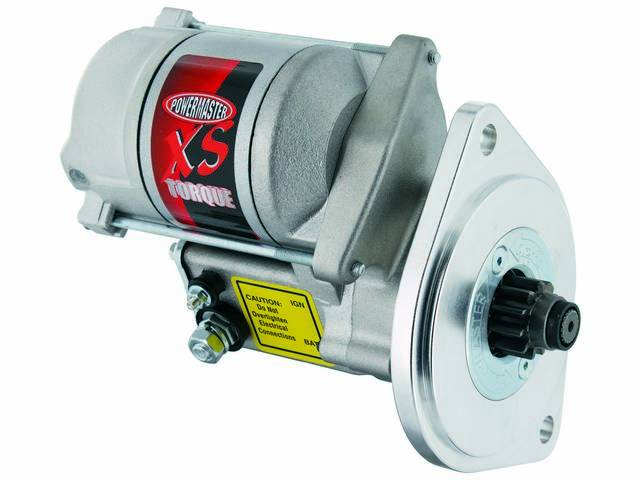

PMGR style.3/4 offset.200 foot pounds of torque.Rated for up to 18:1 compression.Fits 4.084 diameter block plate.THhe choice for highly modified engines or where heat soak or space limitation is a concern.No heat soak problems.Machined aluminum mounting block.Weighs 8.5 pounds.Very efficient.
See 11002-4AK, 11002-5AK for mounting hardware options.
Typically the 3/4 offset Ford starter is used on M/T with 157 or 160 tooth flywheels and all A/T (157, 160 or 164 tooth flexplates).
**Powermaster requires customers to contact them directly for any defects or warranty claims while the product is STILL installed on the vehicle.Do not return any “defective” product to NPD without prior contact with Powermaster.**
Note use of a PMGR style starter with a computer controlled engine requires the addition of a diode suppressed starter solenoid relay switch (11450),See F-11450-5 (Motorcraft) or M-11450-4B (replacement), for a proper solenoid.
Ford Mustang Years:
1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Mercury Cougar Years:
1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Ford Falcon and Ranchero Years:
1963 (63), 1964 (64)
Above years shown are used for searches and are not application listings.
Ford Fairlane and Ranchero Years:
1964 (64)
Above years shown are used for searches and are not application listings.
Ford Truck F1, F2, F3, F100, F150, F250, F350, Expedition, Excursion, Lincoln Navigator and Blackwood Years:
1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81)
Above years shown are used for searches and are not application listings.
Ford Bronco Years:
1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81)
Above years shown are used for searches and are not application listings.
Ford Mustang Fox Body and SN-95 Years:
1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91), 1992 (92), 1993 (93), 1994 (94), 1995 (95)
Above years shown are used for searches and are not application listings.
NPD Part Number : 11002-4PX
Manufacturer Reference ‘s: Powermaster 9503, C2OZ-11002-A, C2OZ-11002-B, SA-660, D4OZ-11002-A, D7OZ-11002-A
Product Instructions and Additional Info:
11002-4PX Detail A
11002-4PX Instructions
11002-4PX Instructions 1
11002-4PX Techdata
