Description

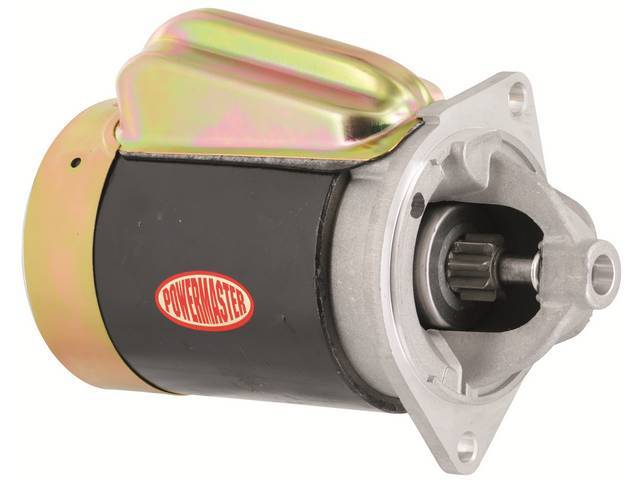

Replacement.3/4 offset.All new components upgraded with modern technology using bigger armature, bigger field coil and a stronger drive.Direct drive.100 ft lbs of torque.1.4 kw, 1.8 hp.OE look exterior with better internals.Stronger, better, more durable and reliable.Good for 10:1 compression and has been used beyond that.3/4 offset.Offset is the distance from the starter mounting surface to the engine side of the ring gear.Fits 4.084 diameter block plate.The applications listed are original listings.We have found some mixing has occurred over the years.Check your measurement before ordering.
See 11002-4AK, 11002-5AK for mounting hardware options.
Typically the 3/4 offset Ford starter is used on M/T with 157 or 160 tooth flywheels and all A/T (157, 160 or 164 tooth flexplates).
**Powermaster requires customers to contact them directly for any defects or warranty claims while the product is STILL installed on the vehicle.Do not return any “defective” product to NPD without prior contact with Powermaster.**
Ford Mustang Years:
1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Mercury Cougar Years:
1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Ford Falcon and Ranchero Years:
1963 (63), 1964 (64)
Above years shown are used for searches and are not application listings.
Ford Fairlane and Ranchero Years:
1964 (64)
Above years shown are used for searches and are not application listings.
Ford Truck F1, F2, F3, F100, F150, F250, F350, Expedition, Excursion, Lincoln Navigator and Blackwood Years:
1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81)
Above years shown are used for searches and are not application listings.
Ford Bronco Years:
1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81)
Above years shown are used for searches and are not application listings.
Ford Mustang Fox Body and SN-95 Years:
1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91), 1992 (92), 1993 (93), 1994 (94), 1995 (95)
Above years shown are used for searches and are not application listings.
NPD Part Number : 11002-4PA
Manufacturer Reference ‘s: Powermaster 3124, C2OZ-11002-A, C2OZ-11002-B, SA-660, D4OZ-11002-A, D7OZ-11002-A
Product Instructions and Additional Info:
11002-4PA Detail A
11002-4PA Techdata
