Description
Our Sales Experts take calls all the time from enthusiasts that want to eliminate wheel hop in drag racing while alsostaying on a tight budget. This is where the Stop the Hop Drag Enthusiast Kit comes in. Our team of engineers gottogether and came up with the best parts for eliminating unwanted wheel hop in the S650 Mustang to help you get abetter time at the drag strip. A kit that gives you the fundamental foundation for ultimate traction and suspensioncompliance. As we have explained before, the factory IRS subframe, (often inaccurately referred to as a cradle),mounts to the chassis with 4 mounting locations utilizing 4 soft rubber bushings with plenty of voids, even in thebolt holes. The kit we put together addresses these issues and more.
First is our Alignment dowel kit. This fills the factory bolt hole voids with CNC machined delrin inserts that willsquare up the rear subframe to the chassis. By filling these voids we are also limiting the side to side and frontto back movement of the subframe that is present under hard acceleration and braking.
Second is our triedand true IRS Subframe Bushing Support System. This 8 piece kit was a first of its kind in the performanceaftermarket and so innovative and popular we patented its design! Made in-house from billet 6061 aluminum andfeaturing stainless steel hardware, this kit fills all the factory voids in the IRS subframe mounting locations. Itsjob is to prevent up and down movements of the subframe.
The 3rd component of this kit is the strongestsupport brace for the S650 IRS on the market!! Made in house from chrome-moly steel, this brace is designed tosupport the factory subframe by directly tying it into the chassis at key mounting locations. Using factory mountinglocations on the factory frame, this 5 point brace supports the front factory mount and the lower control arm mountas well. A simple bolt-in design, this brace ties the subframe to the chassis in the best possible way.
The4th piece is Steeda’s rear lower control arm spherical bushings which are recommended for all drag raceapplications. If you drag race your GT, EcoBoost, or Dark Horse Mustang our rear lower control arm sphericalbearings will play a huge role in eliminating deflection, ensuring your tires hook immediately upon acceleration.Our spherical bearings stop your Mustang from building negative toe on launch. In addition to eliminating deflectionand compliance of the factory bushings, our spherical bearings will also eliminate the spring rate of the factorybushing which does not allow the suspension to articulate up and down freely.
The 5th piece included in this kit is the impressive Steeda Adjustable Rear Camber Arms. These help you dial in thattrack alignment, correct camber after lowering your Mustang, and help you get a better contact patch at the track.These are CNC machined from 6061 aluminum and offer +2 through -5 degrees of adjustment.
NOTE: Steeda IRS Subframe support braces will not fit convertibles. Kit will not fit 2015-2023Mustang.

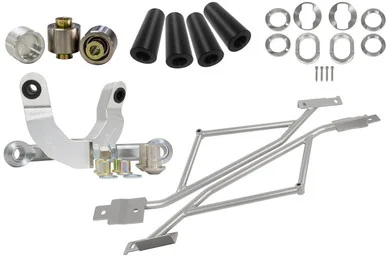

Kit Includes:
- 555-5754 -Steeda IRS Subframe Support Braces
- 555-4438 -Steeda IRS Subframe Alignment Kit
- 555-4437-Steeda IRS Subframe Bushing Support System
- 555-4123 – Steeda Rear Adjustable Camber Arms
- 555-4141-Steeda Rear Lower Control Arm Spherical Bearings
Product Benefits:
- Eliminate wheel hop while not increasing NVH
- Eliminate subframe movement
- Simple install
- Squares subframe to the chassis
- No permanent modifications
Find out which Stop The HopKit is best for you!
