Description

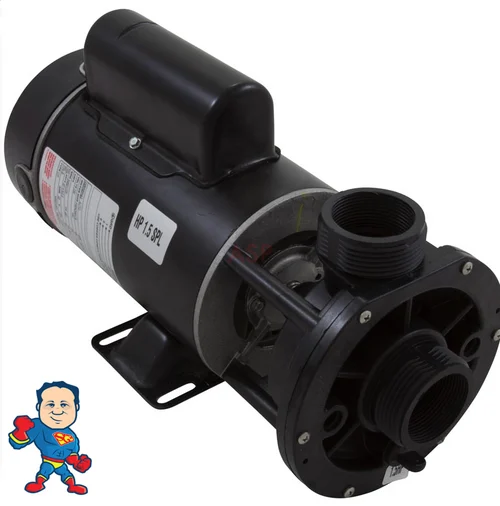

This dual-speed circulation pump features 1-1/2″ plumbing connections that measure approximately 2 3/8″ across the threaded fittings. The center discharge configuration utilizes a 48 Frame Wet End design. Operating on 230V power, this motor offers two distinct speeds with 1.5HP output, drawing 6.5A during high-speed operation and 2.5A when running at low speed.
The Waterway E-Series 48-Frame model with center discharge configuration delivers dependable replacement capabilities for most center discharge installations. Built for lasting durability and consistent operation.
Key Product Features:
- Dependable center discharge design for reliable operation
- Both intake and discharge ports are 1-1/2″
- Rotatable wet end assembly simplifies installation process
- Power range spans from 1.5 to 2hp options
- Unit Dimensions (H x W x L): 7.35″ x 7″ x 14.00″
Important: This updated E-Series model serves as the direct replacement for the previous generation Waterway center discharge pump design.
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
