Description

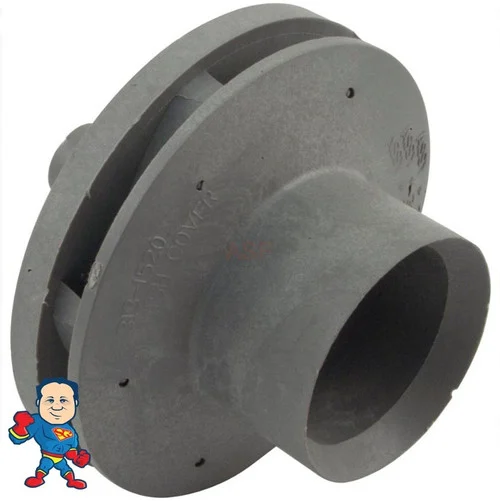

This is a genuine 3/4HP Waterway Hi-Flo Pump Impeller “B” designed for side discharge configurations. Motor voltage specifications: 115V models draw approximately 11 amps, while 230V versions operate at around 7 amps.
Closed face design engineered specifically for Waterway Plastics Hi-Flo side discharge pump wet ends. This 3/4 horsepower rated impeller requires installation on a 3/4hp or higher thru bolt motor for proper operation.
Please note: Shaft seal is not included and must be purchased separately. Available individually or as part of a complete seal kit assembly.
Technical Specifications:
Impeller Type: Closed Face
Impeller Diameter OD: 3-1/2″
Vane Width ID: 5/16″
Eye Diameter OD: 1-13/16″
Eye Length: 1″
Impeller Width OD: 11/16″
Seal Seat Depth: 3/8″
Shaft Length: 15/16″
Shaft Diameter OD: 5/8″
Seal Seat Diameter OD: 1-9/16″
Manufacturer: Waterway
Pump Application: Hi-Flo “B”
