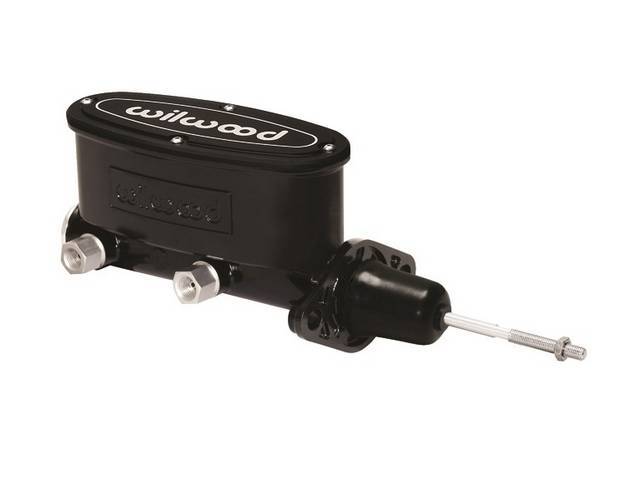

Wilwood Aluminum Master Cylinder, Dual Bowl, 15/16 inch bore, black e-coat finish w/ black lid

Wilwood Aluminum Master Cylinder, Dual Bowl, 15/16 inch bore, black e-coat finish w/ black lid

Original price was: $304.85.Current price is: $60.97.

SKU: C-4650W-19CB Category:

Description

Wilwood Aluminum Master Cylinder, Dual Bowl, 15/16 inch bore, black e-coat finish w/ black lid** for use w/ disc / drum or disc / disc brakes **

Wilwood Aluminum Master Cylinder
Dual bowl, 15/16 inch bore, black e-coat finish with black lid. Designed for use with disc/drum or disc/disc brake systems, this 15/16 bore Wilwood tandem master cylinder is engineered primarily for manual brake applications and includes the correct pushrod for installation. The slightly larger 15/16 bore provides a firmer pedal feel compared to a 7/8 bore, while still maintaining excellent hydraulic leverage for manual systems. Machined from high-pressure die-cast aluminum, this lightweight unit weighs just 3 lbsapproximately 75% lighter than heavy cast-iron OE master cylinders. It fits standard 3.22″3.40″ mount flange spacing common to most mid-1960s and newer domestic vehicles, and features dual-side outlet ports for flexible brake-line routing. A 1.10 stroke and 2:1 chamber volume ratio ensure stable, consistent braking performance.

  • 15/16 bore ideal for manual brake systems; includes pushrod
  • Black e-coat corrosion-resistant finish with black lid
  • Compatible with disc/drum or disc/disc configurations
  • High-pressure die-cast aluminum body weighs only 3 lbs
  • Approximately 75% lighter than OE cast-iron master cylinders
  • Dual-side fluid outlet ports for easier plumbing layout
  • Fits 3.223.40 mount flange spacing (mid-1960s+ domestic vehicles)
  • 1.10 stroke with 2:1 primary-to-secondary chamber volume ratio
  • Also available in 7/8 bore for increased hydraulic leverage

Chevrolet Camaro Years:

1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78)

Chevrolet Chevelle / El Camino / Malibu Years:

1964 (64), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77)

Pontiac Firebird / Trans Am Years:

1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78)

Chevrolet Nova / Chevy II Years:

1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78)

Pontiac GTO / Lemans / Tempest Years:

1964 (64), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72)

Chevrolet C / K 1/2-Ton Pick-Up Truck Years:

1947 (47), 1948 (48), 1949 (49), 1950 (50), 1951 (51), 1952 (52), 1953 (53), 1954 (54), 1955 (55), 1956 (56), 1957 (57), 1958 (58), 1959 (59), 1960 (60), 1961 (61), 1962 (62), 1963 (63), 1964 (64), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1988 (88), 1989 (89), 1990 (90), 1991 (91), 1992 (92), 1993 (93), 1994 (94), 1995 (95), 1996 (96), 1997 (97), 1998 (98)

Chevrolet R / V 1/2-Ton Pick-Up Truck Years:

1987 (87)

Chevrolet 1/2-Ton K5 Blazer Years:

1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91), 1992 (92), 1993 (93), 1994 (94)

Oldsmobile Cutlass Years:

1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77)

Buick Skylark Years:

1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72)

Chevrolet Monte Carlo Years:

1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88)
